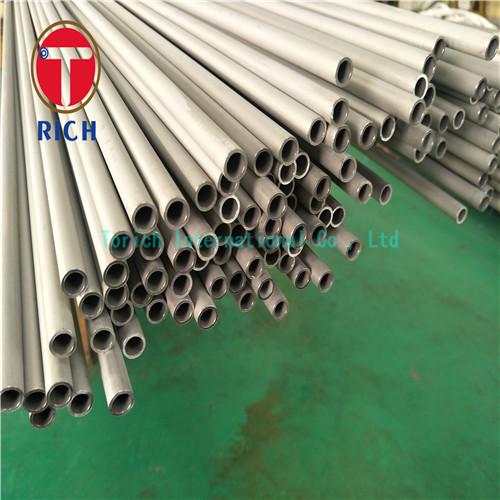

OD 4.76 mm Precision drawn stainless steel. Specialty alloy tubing. Precision Stainless Steel Tube
Tolerance:D4/T3
NDT:Eddy Current or Hydraulic Test or UT
Heat treatment: Bright Annealed
Quality Assurance: ISO 9001&PED 97/23/EC certificated with 100% traceability on all instrument tubes and material test reports(EN 10204/3.1B)accompany every shipment upon request.
Why choose coiled tubing?
1.Reduce your cost.
More than 1000 meters: Highly reduces the tubing unions and connections during installation.
Installation more convenient more cheap Also reduce maintenance cost.
2.Improve the Security.
Reduce the risk of leaks in the instrument of hydraulic system.
Reduce the tubing unions and connections when vertical installation.
As you reduce the tubing unions and connections,It totally improves the integrity of the whole system,improves the ety and security during working.
3.Compact Package for Shipment And Storage.
Because of the limited length of container in sea shipment,normally,we only can ship seamless steel tube with length not more than 15 meters.But for coiled tubing ,even length reaching more than 1000meters,It also can be shipped easily in container .The seamless coiled tubing is level wound per coil,then packed by plywood case,Also it can be level wound on wooden or plastic spools for the smaller dimensions.
What kind of coiled tubing we can produce?
Unit:mm
| OD 4.76 | WT 0.71 0.89 1.24 |
| OD 6 | WT 1 1.5 |
| OD 6.35 | WT 0.71 0.89 1.24 1.65 |
| OD 7.94 | WT 0.71 0.89 1.24 1.65 |
| OD 9.53 | WT 0.71 0.89 1.24 1.65 |
| OD 10 | WT 1 1.5 |
| OD 12 | WT 1 1.5 2 |
| OD 12.7 | WT 0.71 0.89 1.24 1.65 2.11 |
| OD 14 | WT 1 1.5 2 |
| OD 15.88 | WT 0.89 1.24 1.65 2.11 |
| OD 16 | WT 1 1.5 2 |
| OD 19.05 | WT 0.89 1.24 1.65 2.11 |
| OD 25.4 | WT 0.89 1.24 1.65 2.11 |
Application:
Control line Tubing in Oil and Gas Well.
Instrument Tubing
Chemical Injection Tubing Line
Electric Heating or Steam Heating Tubing Line
Heater tubing Line
