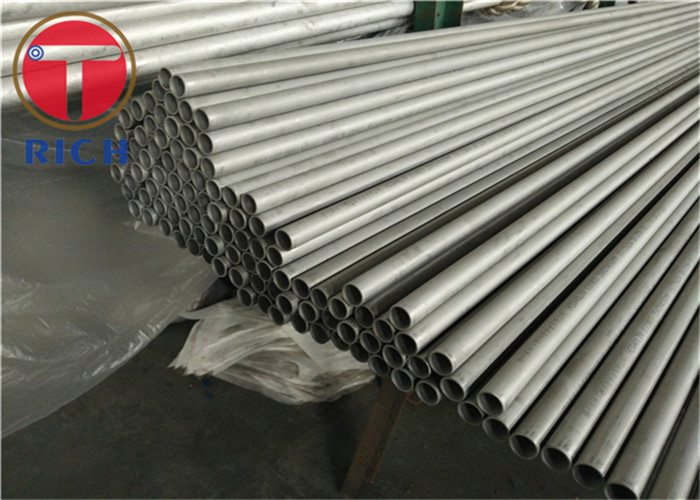

Jis g3459 Seamless Stainless Steel Pipes
Introduction:
Standard JIS G3459
Certification: ISO 9001 ISO14001 TS 16949
Place of Origin: China
Minimum Order Quantity: 5TONS
Payment Terms: T/T or D/P or L/C
Supply Ability: 5,000tons per year
Delivery Time: 30-60days after received your payment
Packaging Details: Packed in bundles or wooden box or upon request
Shipment: FCL, LCL workable. Bulk Vessel workable By Air, By Sea, by Courier
Diameter: OD:5-420mm
Length: Upon request
Application for pressure purpose,for low temperature service,high temperature service
Grade:SUS304TP,SUS310TP,SUS316TP,SUS317TP,SUS347TP
Produce method:arc welding ,seamless laser welding ERW(electric resistance welding)
Heat treatment: rapid cooling cold finished hot finished annealing air cooling slow cooling
Relevant standard :KS D 3576 ASTM A 312 A376 DIN 17455 DIN 17456 BS3605 BS 4127
| CHEMICAL COMPOSITION % max |
| steel grade | chemical composition |
| | C | Si | Mn | P | S | Ni | Cr | Mo | others |
| SUS304TP | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 8.00-11.00 | 18.00-20.00 | - | - |
| SUS304HTP | 0.04-0.10 | 0.75 | 2.00 | 0.040 | 0.030 | 8.00-11.00 | 18.00-20.00 | - | - |
| SUS304LTP | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 9.00-13.00 | 18.00-20.00 | - | - |
| SUS310TP | 0.150 | 1.50 | 2.00 | 0.040 | 0.030 | 19.00-22.00 | 24.00-26.00 | - | - |
| SUS310STP | 0.080 | 1.50 | 2.00 | 0.045 | 0.030 | 19.00-22.00 | 24.00-26.00 | - | - |
| SUS316TP | 0.080 | 1.000 | 2.00 | 0.045 | 0.030 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | - |
| SUS316HTP | 0.04-0.10 | 0.750 | 2.00 | 0.030 | 0.030 | 11.00-14.00 | 16.00-18.00 | 2.00-3.00 | - |
| SUS316LTP | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 12.00-16.00 | 16.00-18.00 | 2.00-3.00 | - |
| SUS316TiTP | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | Ti5*C% min |
| SUS317TP | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - |
| SUS317LTP | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - |
| SUS347TP | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 9.00-13.00 | 17.00-19.00 | - | Nb 10*C% min |
| SUS347LTP | 0.04-0.10 | 1.00 | 2.00 | 0.030 | 0.030 | 9.00-13.00 | 17.00-20.00 | - | Nb 8*C%-1.00 |
| MECHANICAL PROPERTIES min |
| Steel grade | Tensile strength Mpa | Yeild point or proof stress Mpa | Elongation % |
| | | | |
| SUS304TP | 520 | 205 | 35 |
| SUS304HTP | 520 | 205 | 35 |
| SUS304LTP | 480 | 175 | 35 |
| SUS310TP | 520 | 205 | 35 |
| SUS310STP | 520 | 205 | 35 |
| SUS316TP | 520 | 205 | 35 |
| SUS316HTP | 520 | 205 | 35 |
| SUS316LTP | 480 | 175 | 35 |
| SUS316TiTP | 520 | 205 | 35 |
| SUS317TP | 520 | 205 | 35 |
| SUS317LTP | 480 | 175 | 35 |
| SUS347TP | 520 | 205 | 35 |
| SUS347HTP | 520 | 205 | 35 |
Q&A
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:Do you have agent or distributor in our country?
A:We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
Q:How is your production capability?
A:1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment
Q:How to get the sample?
A:1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
