Brand Name : Torich
Model Number : ASTM A269
Certification : ISO
Place of Origin : China
MOQ : 1 pc
Price : negotiable
Payment Terms : T/T, L/C
Supply Ability : 10000tons per year
Delivery Time : 30-60days
Packaging Details : Packed in bundles or wooden box or upon request
Wall thickness : 0.1-2mm
Type : Welded
Application : Chemical
Finish : Brush Polish
Surface : BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Grade : 201/202/304 /304L/316/316L321/310s/410/420/430/440/439ect
ASTM A 269 SS 4mm 3/16 Stainless Steel Instrumentation Tube Thin Wall Tubing
Quick detail:
Size range | 0.25-25mm |
Wall thickness | 0.05-2mm(±10%) |
Grade | 304,316,304L,316 ,316L,321 |
Characteristics:
1.Corrosion resistance,
2.High temperature resistance,
3.High precision
4.Excellent electromagnetic shielding performance
Product Details:
Size :0.25-5mm
Wall thickness: 0.05-2mm
Grade: 304,304L,316,316L,321
Production method: weld+cold drawing
Application:
Capillary tubes are generally used in small Freon refrigeration devices below 20kW. The capillary tube
is made of red copper tube, the length is 1~6m, the inner diameter is 0.5~2mm. Through the various
combinations of length and tube diameter, it can meet the requirements of different working conditions
and different cooling capacity refrigerant devices, but the capillary tube is selected and After installation,
it cannot change with load changes. In order to make the refrigeration device operate efficiently in most
of the time, it is extremely important to select representative design conditions.

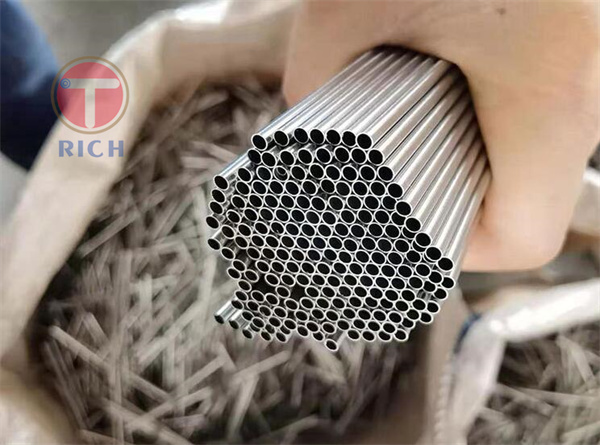

Product Details Photo Show:
Application:
![]() |
Astm A269 4mm Ss316 Thin Wall Stainless Steel Tube Images |
