Name: St52 Chrome Plated DIN 2391 Hollow Piston Rod
Brand: TORICH
Price: 1000 USD

Brand Name : TORICH

Model Number : DIN2391, EN10305, GB/T 1619

Certification : ISO9001 ISO14001

Place of Origin : Zhejiang,CN

MOQ : 2 tons

Price : 1000-1500usd per ton

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 tons per year

Delivery Time : 30-45 days

Packaging Details : wooden box or paper tube

Product name : ST52 Chrome Plated Hollow Piston Rod

Keyword : ST52 Piston Rod

Material : CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, Stainless Steel 304/316/2205, etc.

Application : for hydraulic cylinder

Diameter tolerance : ISO f7/h8/g6

Roundness : Half of the tolerance ISO f7

Contact Now

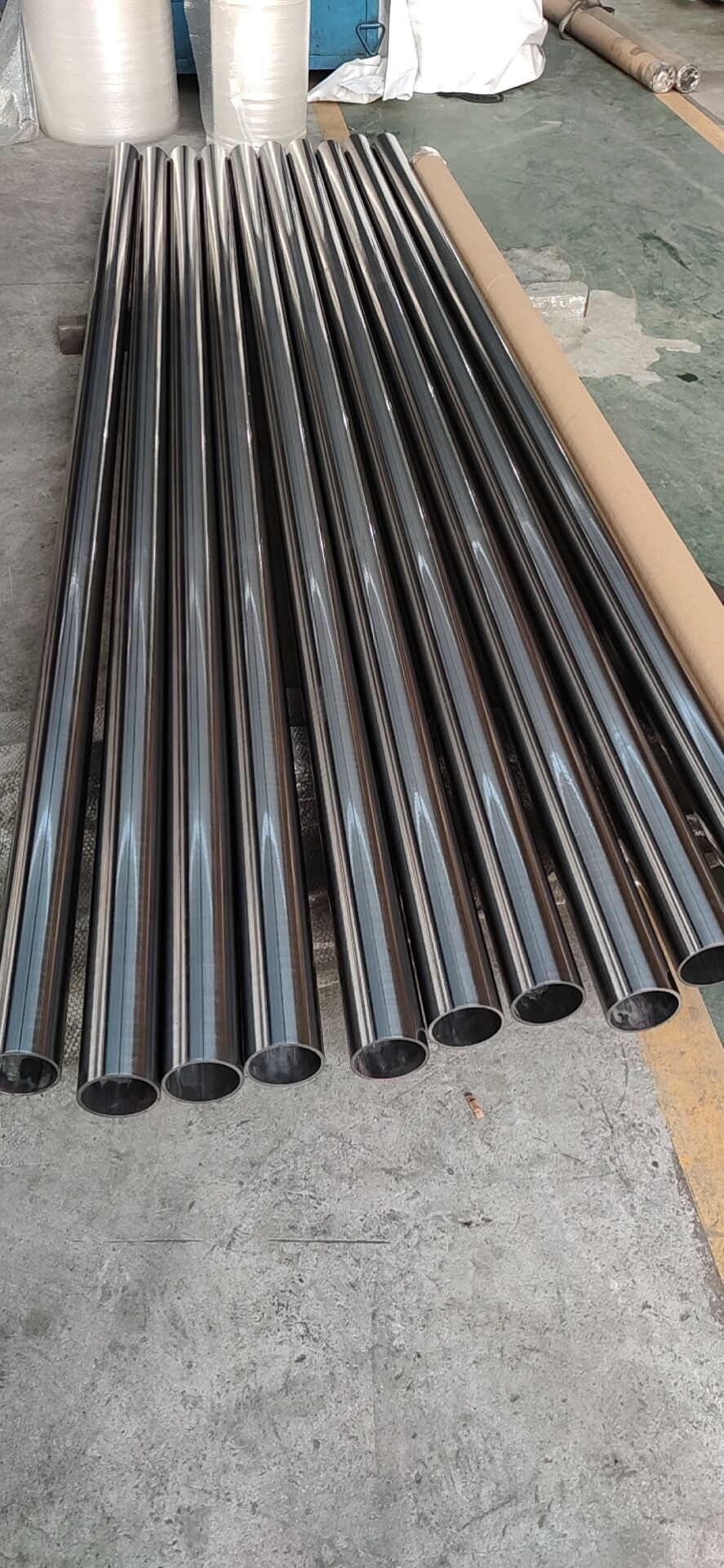

ST52 Chrome Plated Hollow Piston Rod

Product Name	ST52 Chrome Plated Hollow Piston Rod
Material	CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, Stainless Steel 304/316/2205, etc.
Delivery Condition	Hard Chrome Piston Rod ( HRC 15-20) Quenched & Tempered (Q+T) Rod (HRC 28-32) Induction Hardened Rod (HRC 55-62) Q+T Induction Hardened Rod (HRC 60-65)
Straightness:	<= 0.2/1000
Roughness:	Ra <= 0.2u
Diameter	As customer’s needs
Chrome layer	20 micron (min) to 100 micron
Length	max 13m
Roundness	DIN2391, EN10305, GB/T 1619
Tolerance	ISO f7/h8/g6
Shape	Round
Protection:	anti-rust oil on outside surface,hard cardboard sleeve protection
Used	Hydraulic Cylinders
Packing:	wooden case

Piston Rod

Hard Chrome Plated Piston Rod
