E235 +SRA CDS Cold Rolled Hydraulic Cylinder Tube for Telescopic Systems

Name: E235 SRA CDS Cold Rolled Hydraulic Cylinder Tube for Telescopic Systems
Brand: TORICH
Price: 600 USD

Buy cheap E235 +SRA CDS Cold Rolled Hydraulic Cylinder Tube for Telescopic Systems product

Brand Name : TORICH

Model Number : EN10305-1

Certification : ISO 9001-2008 ISO 14001 TS 16949 DNV LR

Place of Origin : China

MOQ : 5 tons

Price : 600-1200 USD/ton

Supply Ability : 50000 tons per year

Delivery Time : 35-60 days after order confirmed

Packaging Details : oil antirust in hexagonal bundles in carton boxes or per request

Material : Carbon Steel

Steel Grade : E235 E355 etc

Standard : EN10305-1

Dimension : O.D.:6-350mm W.T.:1-35mm L:max12000mm

Manufacture techinique : Seamless Cold Drawn/Rolling

Application : Cylinder/Telescopic Cylinders/Jack Cylinders/Lifting Systems/Oil Cylinders

Heat treatment : +SR, +C,or +N specified by customer

Shape : Round

Contact Now

EN10305-1 E235 +SRA CDS Hydraulic Cylinder Tubes for Pneumatic Cylinders Tube and Telescopic Systems

Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes

Steel tubes for precision applications.

Applications: for Auto industry/for machinery use/Oil Cylinder Tube/Motorcyle shock absorber
Auto shock absorber inner cylinder/Telescopic Cylinders

Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm

Production: Cold Drawn + Honing + Skiving + Roller Burnish

Steel Grade and Chemical Compositions:

Steel Grade		C	Si	Mn	P	S	Al
Steel Name	Steel Number	max	max	max	max	max	min
E215	1.0212	0.10	0.05	0.70	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025	-
E355	1.0580	0.22	0.55	1.60	0.025	0.025	-

Mechanical properties at room temperature
Steel Grade		Minimum values for the delivery condition
Steel Name	steel Nubmer	(+Cc)		(+LCc)		(+SR)			(+Ad)		(+N) NBK
Steel Name	steel Nubmer	Rm Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %
E215	1.0212	430	8	380	12	380	280	16	280	30	290-430	215	30
E235	1.0308	480	6	420	10	420	350	16	315	25	340-480	235	25
E355	1.0580	640	4	580	7	580	450f	10	450	22	490-630	355	22

Note: Special steel grade is also available, according to customer request.

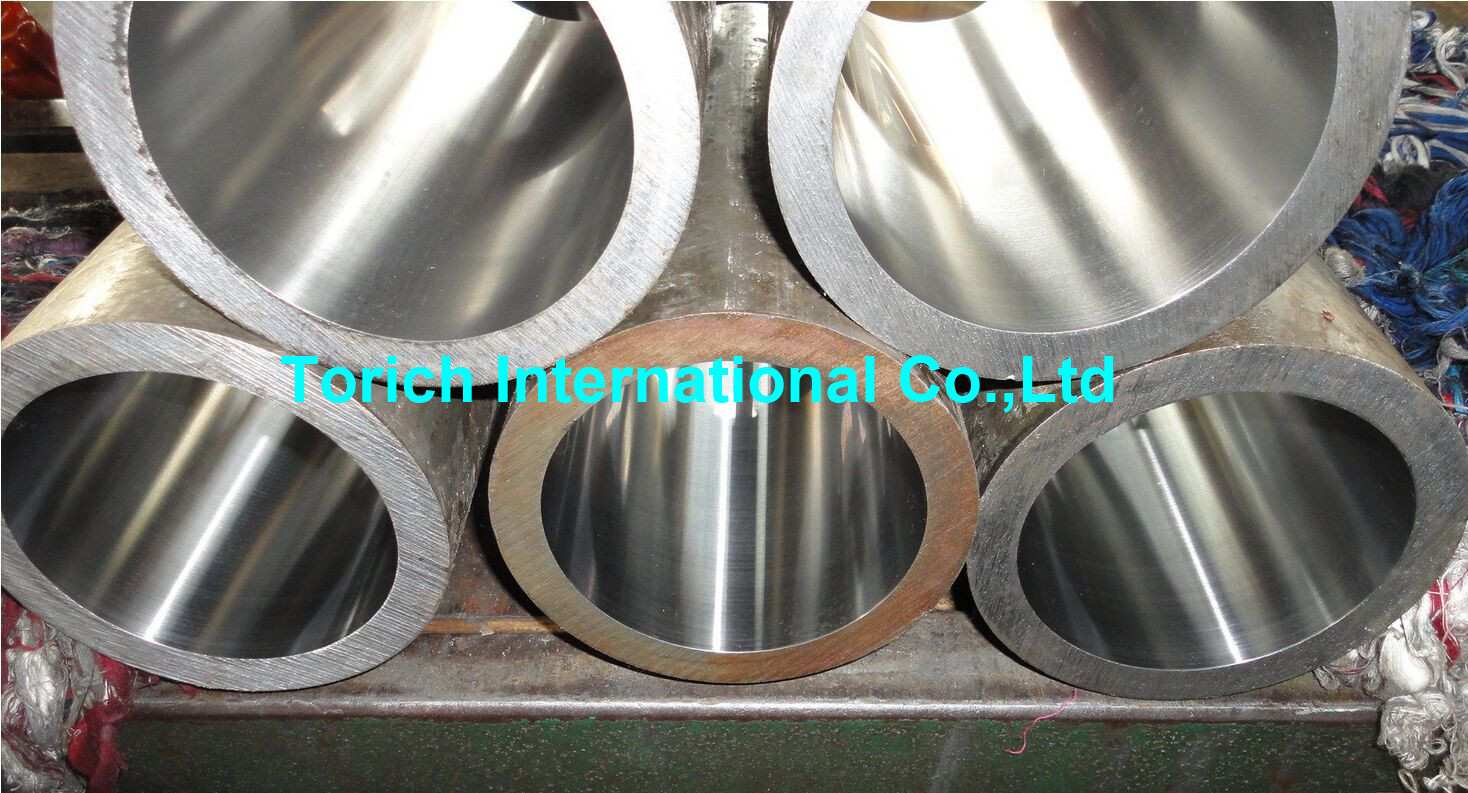

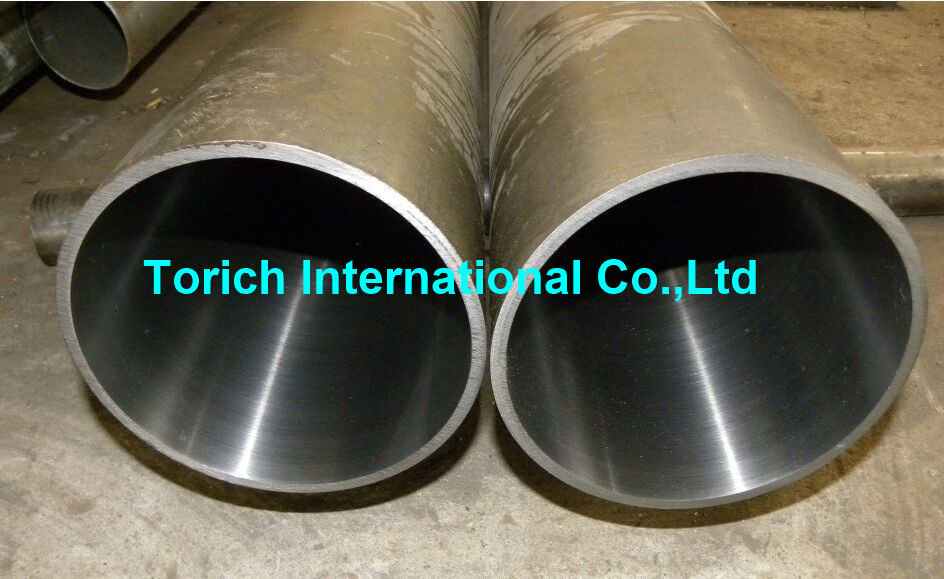

Production Site:

E235 +SRA CDS Cold Rolled Hydraulic Cylinder Tube for Telescopic Systems

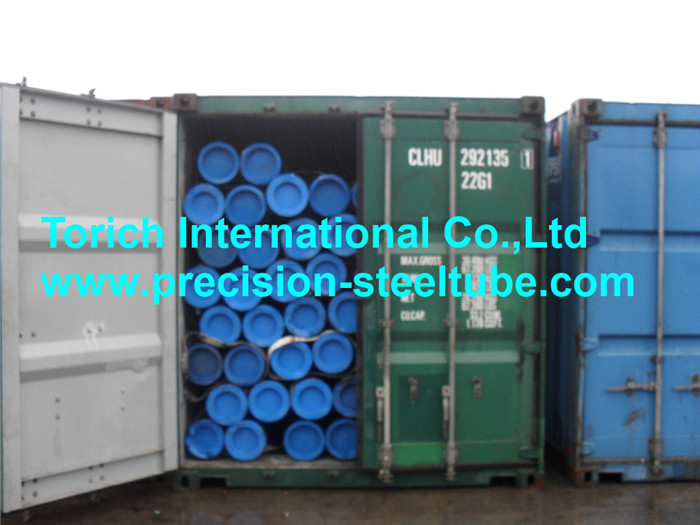

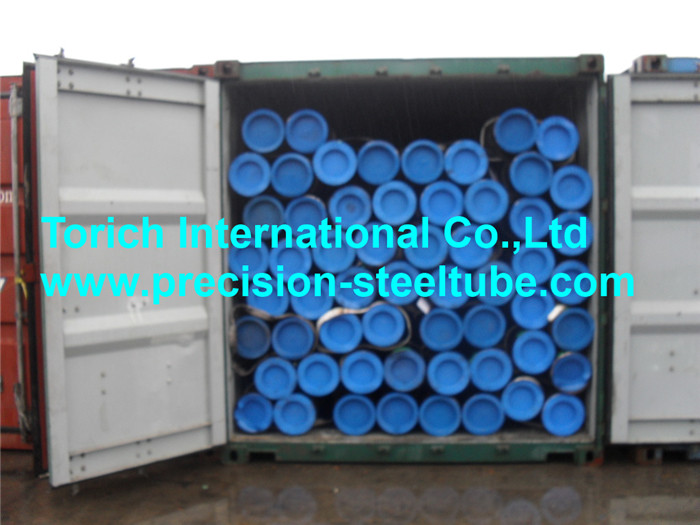

Shipment & Container Loading:
