Large Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic Cylinder

Brand Name : Torich

Model Number : GB/T3639、GB/T8713、EN10305-1:2002、EN10305-2:2002、 ASTM A519-2006、ASTM A513-2007、GB/T1591-2008、GB/T17396-2009

Certification : GB/T 19001-2008 , ISO 9001:2008 , TS16949

Place of Origin : China

MOQ : 5 ton

Price : USD1900-1950per ton

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 6000MT/Month

Delivery Time : 30-45 days

Packaging Details : Oil protection in bundles or in carton boxes or seaworthy packing

Type : Hydraulic Cylinder Tube

Material : 20#、45#、Q345B,25Mn、27SiMn、E355

I.D. : 40-400mm

W.T. : ≥5mm

Technique : Cold Drawn

Length : Up to 12000mm according to customer's requirement

Surface Treatment : Oiled

Contact Now

Seamless Cold Drawn Steel Tube For Hydraulic Cylinder And Pneumatic Cylinder







Standard :  GB/T3639, GB/T8713, EN10305-1:2002, EN10305-2:2002,
                      ASTM A519-2006, ASTM A513-2007, GB/T1591-2008, GB/T17396-2009

Material:       20#, 45#, Q345B, Q345D, 25Mn, 27SiMn, E355





 Hydraulic and pneumatic cylnder tube standard/size/tolerance


 Working method


Tube ID

(mm)

 Length

(m)
Straightness
(mm/m)

 Tolerance

on ID

 Tolerance

on WT


 ID Roughness

(um)
Cold Draw 40-400 ≤12m 0.2-0.5 　/ ±5% ≤1.6
Cold Rolled 40-150 ≤12m 0.2-0.5 　/ ±5% ≤0.8
Cold Draw-Honed 40-400 ≤8m 0.2-0.3 H8-H9 ±5% ≤0.4
Cold Draw-Rolling 50-300 ≤8m 0.2-0.3 H8-H9 ±5% ≤0.4
Deep hole boring-Roing  250-400 ≤8m 0.2-0.3 H8-H9 ±8% ≤0.8
Deep hole boring-Honed Roing 250-400 ≤8m 0.2-0.3 H8-H9 ±8% ≤0.4



 Mechancial property
　

                   Final supply                      condition







Steel grade

 Cold finished(hard)(BK) (Cold drawn and stress-relieved(BK+S)

T.S

bN/mm2

  Elogation  5% T.S bN/mm2 Y.S Bn/mm2  Elogation 5% Hardness HB  Impact value(-20℃)J
20 ≥550 ≥8 ≥520 ≥400 ≥15 170 /
45 ≥680 ≥5 ≥630 ≥520 ≥12 190 /
Q345B ≥660 ≥8 ≥620 ≥520 ≥15 190 /
Q345D ≥660 ≥8 ≥620 ≥520 ≥15 190 ≥27
25Mn ≥640 ≥8 ≥620 ≥510 ≥15 190 /
27SiMn ≥780 ≥5 ≥700 ≥580 ≥10 210 /
E355 ≥700 ≥8 ≥650 ≥580 ≥15 195 ≥27



 Chemecal composition
　

Steel grade		 C Si Mn P S Cr Ni Cu V
20 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 ≤0.25 ≤0.30 ≤0.25 /
45 0.42-0.50 0.17-0.37 0.50-0.80 ≤0.035 ≤0.035 ≤0.25 ≤0.30 ≤0.25 /
Q345B ≤0.20 ≤0.50 ≤0.17 ≤0.035 ≤0.035 ≤0.30 ≤0.50 ≤0.30 ≤0.15
Q345D ≤0.18 ≤0.50 ≤0.17 ≤0.030 ≤0.025 ≤0.30 ≤0.50 ≤0.30 ≤0.15
25Mn 0.24-0.32 1.10-1.40 1.10-1.40 ≤0.035 ≤0.035 ≤0.30 ≤0.30 ≤0.20 /
27SiMn 0.22-0.29 0.17-0.37 0.70-1.0 ≤0.035 ≤0.035 ≤0.25 ≤0.30 ≤0.25 /
E355 ≤0.22 ≤0.50 ≤1.60 ≤0.035 ≤0.025 / / / /



(Tolerance on ID) um
　
ID Size (Tolerance on ID)um
H7 H8 H9 H10
30 +21
0		 +33
0		 +52
0		 +84
0
>30-50 +25
0		 +39
0		 +62
0		 +100
0
>50-80 +30
0		 +46
0		 +74
0		 +120
0
>80-120 +35
0		 +54
0		 +87
0		 +140
0
>120-180 +40
0		 +63
0		 +100
0		 +160
0
>180-250 +46
0		 +72
0		 +115
0		 +185
0
>250-315 +52
0		 +81
0		 +140
0		 +210
0
>315-400 +57
0		 +89
0		 +170
0		 +230
0

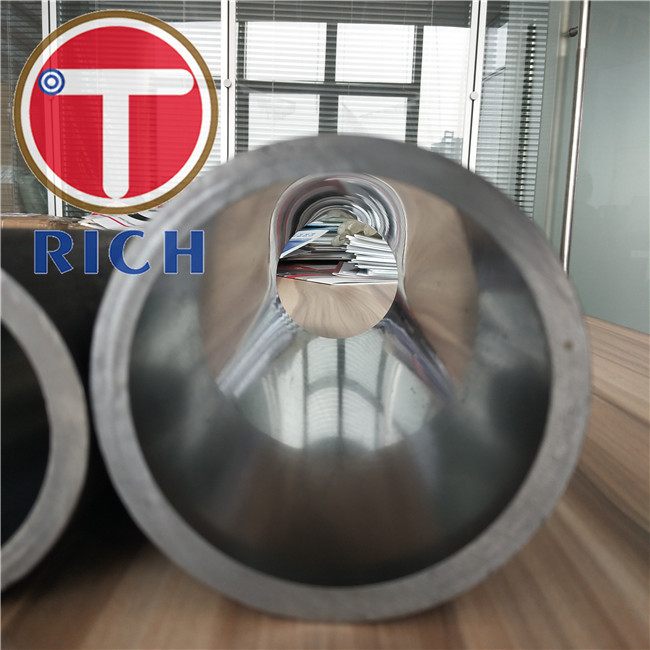

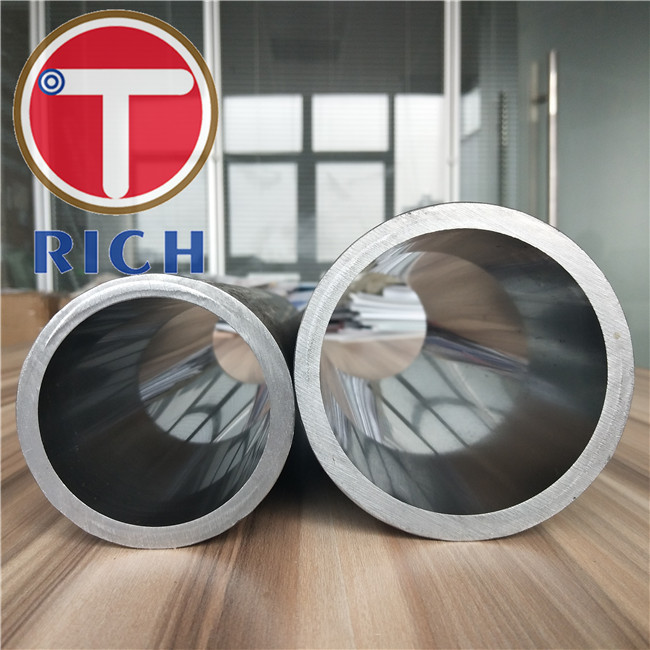

  Large Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic CylinderLarge Diameter Seamless Cold Drawn Steel Tube For Hydraulic Pneumatic Cylinder
