Hydraulic / Pneumatic Cylinder Precision Steel Tubes Seamless 80mm Round Shape

Brand Name : Torich

Model Number : GB/T8713-1988

Certification : ISO9001

Place of Origin : China

MOQ : 1000kg

Price : 1000-1800 USD/TON

Payment Terms : D/A

Supply Ability : 10000tons per year

Delivery Time : 3-4 weeks

Packaging Details : In bundles in wooden box

Contact Now

GB/T8713-1988 Hydraulic and Puematic Cylinder Precision ID Seamless Steel Tube

Precision In Diameter Samless Steel Pipe For Fluid Power Cylinder as per standard GB T8713-88



Delivery condition:Cold working/Hard Cold working/Soft Annealing.or other treatment

Cylinder tubes Matarial:10 20 35 45 16Mn Which you can follow standardGB699-88 to check the Chemical component and Mechanical properties.



  WT

ID



 1.5 2.0 2.5 3.0 3.5 5.0 6.0 7.5 10.0 12.5 15.0 20.0
OD
25 28     31   35   40
32 35 36   38   42   47
40     45 46   50   55
50     55 56   60   65 70 75
63     68 69   73 75 78 83 88
80     85 86   90 92 95 100 105 110
100     105 106   110 112 115 120 125 130
125         132 135 137 140 145 150 155 165
160         165 170   175 180 185 190 200
200           210   215 220 225 230 240





OD tolerance

 OD/mm Tolerance/mm OD/mm Tolerance/mm
>0～30 ±0.10 >140～150 ±0.75
>30～40 ±0.15 >150～160 ±0.80
>40～50 ±0.20 >160～170 ±0.85
>50～60 ±0.25 >170～180 ±0.90
>60～70 ±0.30 >180～190 ±0.95
>70～80 ±0.35 >190～200 ±1.00
>80～90 ±0.40 >200～2l0 ±1.05
>90～100 ±0.45 >210～220 ±1.10
>100～120 ±0.50 >220～230 ±1.15
>120～140 ±0.65 >230～240 ±1.20



   ID tolerance

 ID/mm Tolerance/μm
H8 H9 H10
>3～6 +18 0 +30 0 +48 0
>6～10 +22 0 +36 0 +56 0
>10～18 +27 0 +43 0 +70 0
>18～30 +33 0 +52 0 +84 0
>30～50 +39 0 +62 0 +100 0
>50～80 +46 0 +74 0 +120 0
>80～120 +54 0 +87 0 +140 0
>120～180 +63 0 +100 0 +160 0
>180～250 +72 0 +115 0 +185 0





Bending:

A class:0.3:1000

B class:1.0:1000

C class:1.5:1000



Application:Hydraulic and pneumatic Cylinder.

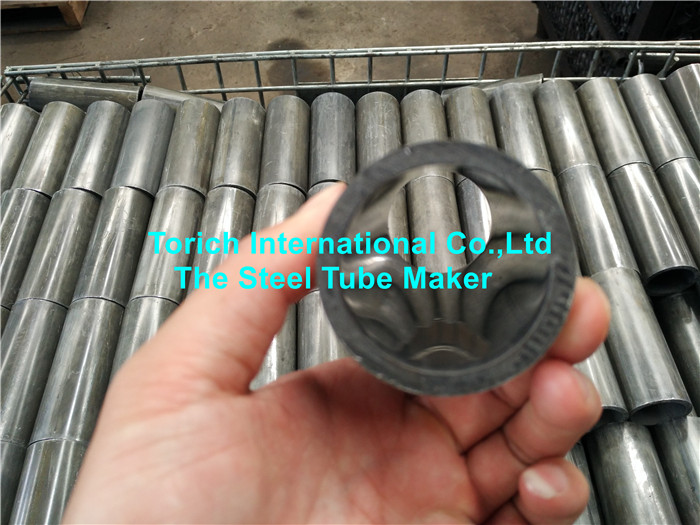

Hydraulic / Pneumatic Cylinder Precision Steel Tubes Seamless 80mm Round Shape Hydraulic / Pneumatic Cylinder Precision Steel Tubes Seamless 80mm Round Shape



Hydraulic / Pneumatic Cylinder Precision Steel Tubes Seamless 80mm Round Shape Hydraulic / Pneumatic Cylinder Precision Steel Tubes Seamless 80mm Round Shape
