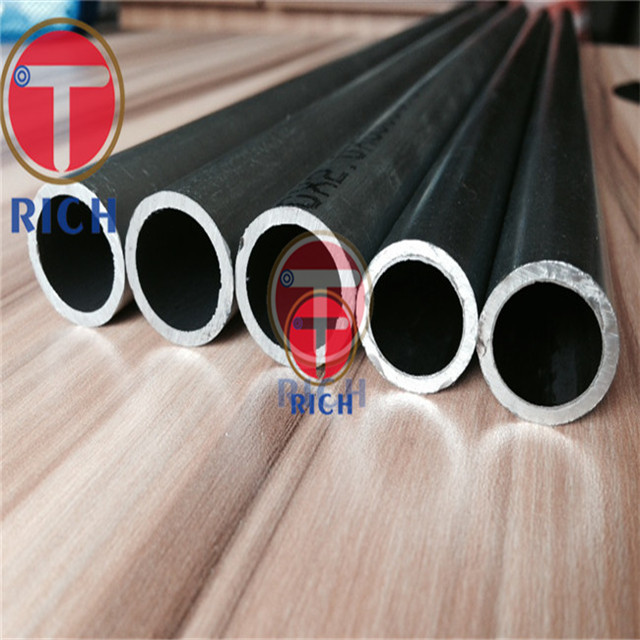

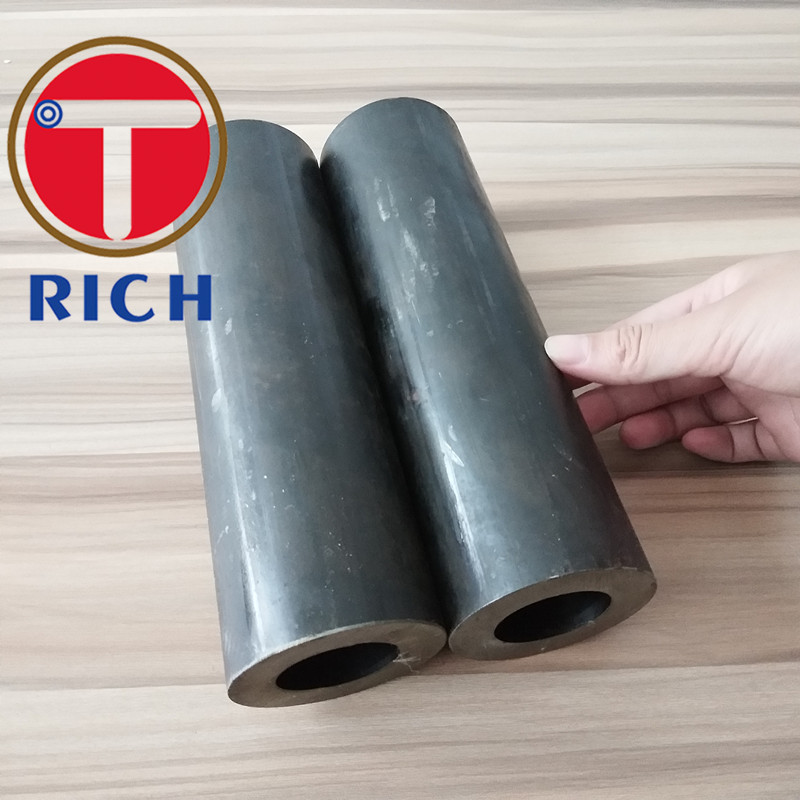

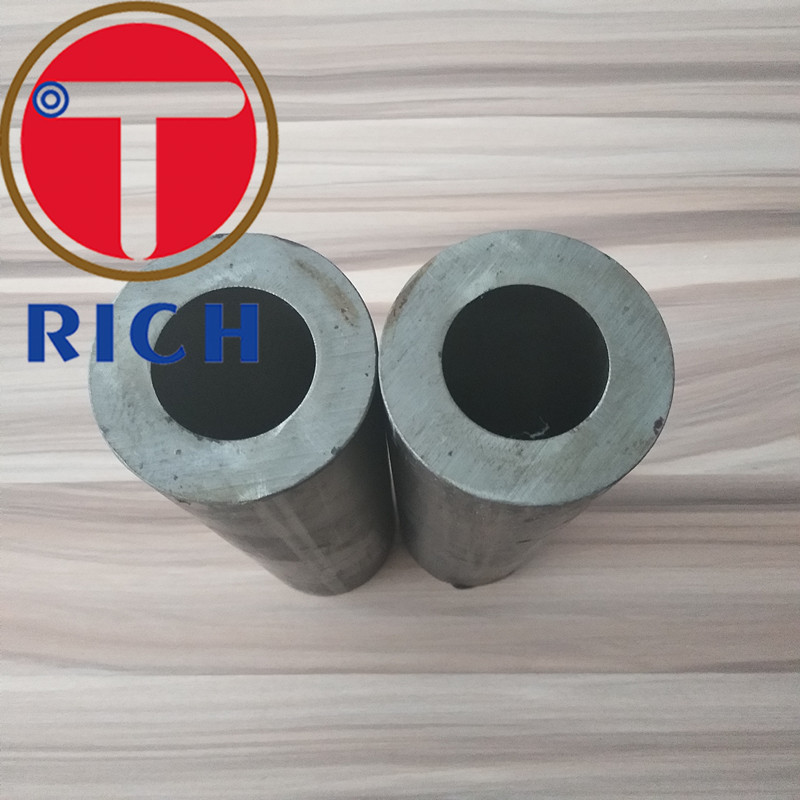

TORICH Heavy Thick Wall Honed Seamless Cold Drawn Steel Tube Mechanical En10305-1 Astm A513
Standard: ASTM A513
Grade Group: A53-A369
Thickness: 0.5 - 50 mm
Outer Diameter(Round): 5 - 420 mm
Surface Treatment: Bright
Technique: Cold Drawn, Cold Drawing
Material: SAE1010,SAE1020,SAE1026,SAE4130,SAE4140
L: max12000mm
1. ASTM A519 Oil cylinder Seamless Carbon and Alloy Steel Mechanical Tubing
2. Steel Grade: SAE1010,SAE1020,SAE1026,SAE4130,SAE4140
3. Porudction Method: Cold drawing + Honing + Skiving Roller Bunish
4. Packing: Could be in Cartons or Wooden Box
We offer Cut to short lengths according to customer reqirement and drawings.
| Chemical composition | |
| Steel Grade | C% | Si% | Mn% | P% | S% | AL% |
| St30Al or E215 | ≤0.10 | ≤0.05 | ≤0.7 | ≤0.025 | ≤0.025 | ≥0.025 |
| St35 or E235 | ≤0.17 | ≤0.35 | 0.4-1.2 | ≤0.025 | ≤0.025 | |
| St45 or E255 | ≤0.21 | ≤0.35 | 0.4-1.1 | ≤0.025 | ≤0.025 | |
| St52 or E355 | ≤0.22 | ≤0.55 | ≤1.6 | ≤0.025 | ≤0.025 | |
| | Mechanical properties at room temperature | | |
| Delivery condition | BK | BKW | GBK | NBK (N) |
| steel Grade | Rm Mpa (Min) | A %(Min) | Rm Mpa(Min) | A %(Min) | Rm Mpa(Min) | A %(Min) | Rm Mpa(Min) | ReH Mpa(Min) | A %(Min) |
| St30Al or E215 | 430 | 8 | 380 | 12 | 280 | 30 | 290 to 430 | 215 | 30 |
| St35 or E235 | 480 | 6 | 420 | 10 | 315 | 25 | 340 to 480 | 235 | 25 |
| St45 or E255 | 580 | 5 | 520 | 8 | 390 | 21 | 440 to 570 | 255 | 21 |
| St52 or E355 | 640 | 4 | 580 | 7 | 450 | 22 | 490 to 630 |

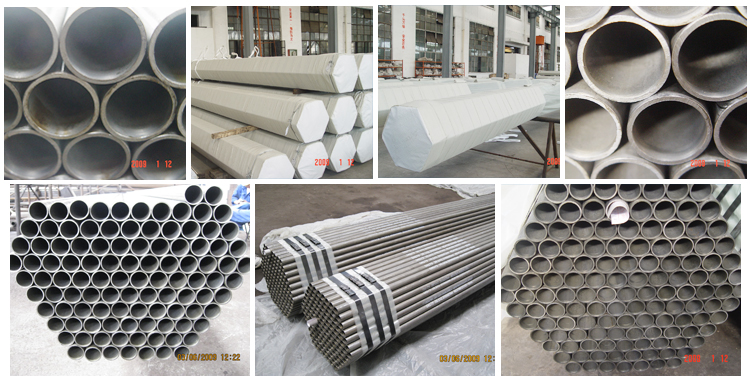

PACKING
In hexagonal bundles packaging with woven
In hexagonal shaps,the tubes will be well fixed,so it can avoid the damages when delievey .
FAQ
What is your Guarantee?
1.SO9001:2008 and TS16949 certification, SGS, BV, TUV or other third party inspection is available.
2.High quality with competitive price.
3.Advanced technology, experienced engineer, ISO quality system for quality assurance and traceability.
Do you have agent or distributor in our country?
1.We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
How is your production capability?
1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment
How to get the sample?
1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
How long will you react on our requirement?
1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Product Tags:
|
|
Heavy Thick Wall Honed Seamless Steel Tube Cold Drawn Mechanical Astm A513 Images
|
