Brand Name : Torich
Model Number : ASTM A213
Certification : ISO 9001 ISO14001 TS16949
Place of Origin : China
MOQ : 5 m
Price : negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 20000 Ton per Year
Delivery Time : 30-45 days after order confirmed
Packaging Details : In plywood case, In wooden box.
Characteristic : Finned Tube
Material : ASTM A213, ASTM A179 etc
Production Method : Seamless or welded
Package : In bundles or as per requests
Finish : Annealed
Length : 2-20m
Type : Finned Tube
MTC : EN10204.3.1
Products Description:
ASTM A213 Stainless Steel Tube 1100 Al Fin Embedded in 304 Tube, Fin Tube
Steel Grade/Steel Material:
1. Standard: ASTM A178, ASTM A179, ASTM A192, ASME SA213, ASTM A106 etc
2. Fin Material: Aluminum, Copper Alloy, Stainless Steel, Carbon Steel
3. Base Tube: Copper, Aluminum, Steel, Monel, etc
STEEL GRADE AND CHEMICAL COMPOSITIONS | ||||||||||
Seel Grade | C | Si | Mn | P | S | Ni | Cr | Mo | etc | |
SUS 304TB | 0.08max | 1.00max | 2.00max | 0.040max | 0.030max | 8.00-11.00 | 18.00-20.00 | - | - | |
SUS 304HTB | 0.04-0.10 | 0.75max | 2.00max | 0.040max | 0.030max | 8.00-11.00 | 18.00-20.00 | - | - | |
SUS 304LTB | 0.030max | 1.00max | 2.00max | 0.040max | 0.030max | 9.00-13.00 | 18.00-20.00 | - | - | |
SUS310TB | 0.15max | 1.50max | 2.00max | 0.040max | 0.030max | 19.00-22.00 | 24.00-26.00 | - | - | |
SUS310STB | 0.08max | 1.50max | 2.00max | 0.040max | 0.030max | 19.00-22.00 | 24.00-26.00 | - | ||
SUS 316TB | 0.08max | 1.00max | 2.00max | 0.040max | 0.030max | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | - | |
SUS 316HTB | 0.40-0.10 | 0.75max | 2.00max | 0.030max | 0.030max | 11.00-14.00 | 16.00-18.00 | 2.00-3.00 | - | |
SUS316LTB | 0.030max | 1.00max | 2.00max | 0.040max | 0.030max | 12.00-16.00 | 16.00-18.00 | 2.00-3.00 | - | |
SUS316TiTB | 0.080max | 1.00max | 2.00max | 0.040max | 0.030max | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | Ti:5*C %max | |
SUS317TB | 0.080max | 1.00max | 2.00max | 0.040max | 0.030max | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - | |
SUS317LTB | 0.030max | 1.00max | 2.00max | 0.040max | 0.030max | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - | |
SUS347TB | 0.080max | 1.00max | 2.00max | 0.040max | 0.030max | 9.00-13.00 | 17.00-19.00 | - | Nb:10*C %max | |
SUS347HTB | 0.40-0.10 | 1.00max | 2.00max | 0.030max | 0.030max | 9.00-13.00 | 17.00-20.00 | - | Nb:8*C %-1.00 |
Finned: Extruded fin, Spiral fin, Embedded G fin, Low fin, H fin, L fin etc
Size Range:
Bare tube OD: 8-51mm
Fin pitch: 1.6-10mm
Fin height: less than 17mm
Fin thickness: 0.2-0.4mm
Tube length: 2-20m
Steel Tube Characteristic:
High Anti-corrosion
Anti-wear
Lower Contact Resistance
Higher Stability
Ability to Prevent Dust
TORICH QUALITY ASSURANCE
Application:

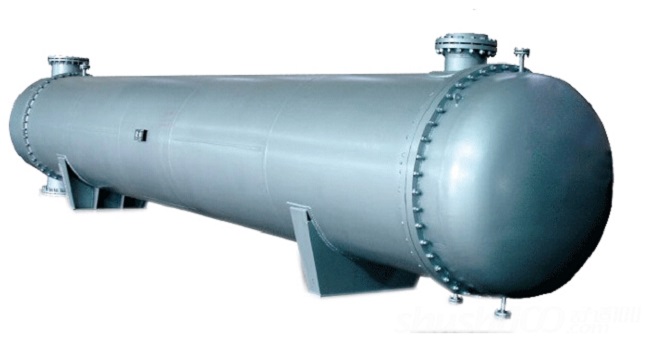

Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater etc.
Production Steel Tube:
Application:
![]() |

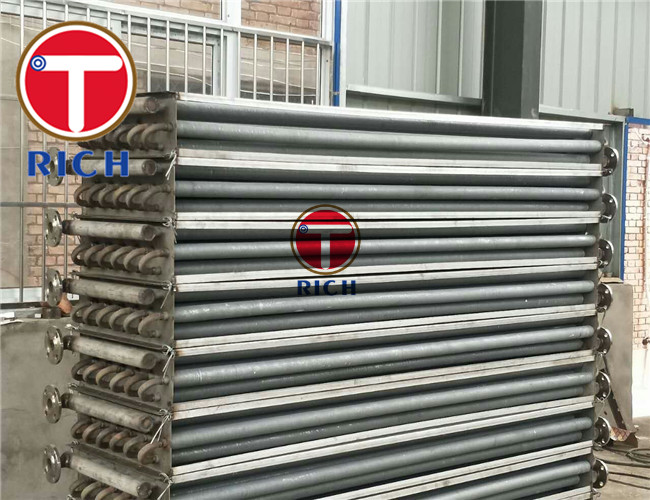

ASTM A213 Stainless Steel Fin Tube 1100 Aluminum Fin Embedded In 304 Tube Images |
