ASTM A519 High Precision Steel Tube Machining , Seamless Steel Pipe for Machining

Name: ASTM A519 High Precision Steel Tube Machining Seamless Steel Pipe for Machining
Brand: TORICH
Price: 600 USD

Buy cheap ASTM A519 High Precision Steel Tube Machining , Seamless Steel Pipe for Machining product

Brand Name : TORICH

Model Number : ASTM A519

Certification : ISO 9001-2008 ISO 14001 TS 16949 TUV CCS

Place of Origin : China

MOQ : 5 tons

Price : USD 600-1200 TON

Supply Ability : 50000tons per year

Delivery Time : 5-8 weeks work days

Packaging Details : Antirust Oil in Bundles

Material : Carbon and Alloy Steel

Steel grade : 1008 1010 1018 1026 etc

Size range : O.D.:6-350mm W.T.:1-50mm L:max12000mm

Applications : for mechinery, mechanical engineer

Shape : Round

Manufacture Techinique : Seamless Cold Drawn and Cold Rolling

Deliver condition : A.W.H.R. A.W.C.R. S.D.C.R. M.D. S.S.I.D.

Characteristic : Mechanical Tubing

Contact Now

Standard: ASTM A519

Seamless Carbon and Alloy Steel Mechanical Tubing ASTM A519

Size range: O.D.:6-350mm W.T.:1-50mm L:max12000mm

Applications: for Machinery, Mechanical Engineer

Raw Material:

Round Steel Billet from Bao Steel

Production:

Hot Piercing→Cold Drawing → Sizing to final dimension

Steel Grade and Chemical Compositions:
Steel	C	Mn	P	S	Si	Cr	Mo
Grade	max		max	max	max	min
1008	0.10	0.30-0.50	0.040	0.050
1010	0.08-0.13	0.30-0.60	0.040	0.050
1018	0.15-0.20	0.60-0.90	0.040	0.050
1020	0.18-0.23	0.30-0.60	0.040	0.050
1026	0.22-0.28	0.60-0.90	0.040	0.050
1035	0.32-0.38	0.60-0.90	0.040	0.050
1045	0.43-0.50	0.60-0.90	0.040	0.050
4130	0.28-0.33	0.40-0.60	0.040	0.040	0.15-0.35	0.80-1.10	0.15-0.25
4140	0.38-0.43	0.75-1.00	0.040	0.040	0.15-0.35	0.80-1.10	0.15-0.25

Grade	condition	Ultimat	Yield	Elongation	Rockwell
		Strength	Strength		Hardness
		ksi Mpa	ksi Mpa	%	B Scale
1020	HR	50 345	32 221	25	55
	CW	70 483	60 414	5	75
	SR	65 448	50 345	10	72
	A	48 331	28 193	30	50
	N	55 379	34 234	22	60
1025	HR	55 379	35 241	25	60
	CW	75 517	65 448	5	80
	SR	70 483	55 379	8	75
	A	53 365	30 207	25	57
	N	55 379	36 248	22	60
1035	HR	65 448	40 276	20	72
	CW	85 586	75 517	5	88
	SR	75 517	65 448	8	80
	A	60 414	33 228	25	67
	N	65 448	40 276	20	72
1045	HR	75 517	45 310	15	80
	CW	90 621	80 552	5	90
	SR	80 552	70 483	8	85
	A	65 448	35 241	20	72
	N	75 517	48 331	15	80
4130	HR	90 621	70 483	20	89
	SR	105 724	85 586	10	95
	A	75 517	55 379	30	81
	N	90 621	60 414	20	89
4140	HR	120 855	90 310	15	100
	SR	120 855	100 689	10	100
	A	80 552	60 414	25	85
	N	120 855	90 621	20	100

Deliver condition:

1. A.W.H.R. "as welded" from hot-rolled steel

2. A.W.C.R. "as welded" from cold-rolled steel

3. S.D.C.R. "sink-drawn", cold-rolled steel

5. M.D. mandrel drawn

6. S.S.I.D. special smooth inside diameter

Please specify the delivery condition and heat treatment requirement when sending the enquiry

ASTM A519 High Precision Steel Tube Machining , Seamless Steel Pipe for Machining

Applications:

Product Tags:

steel mechanical tubing

low carbon steel pipe

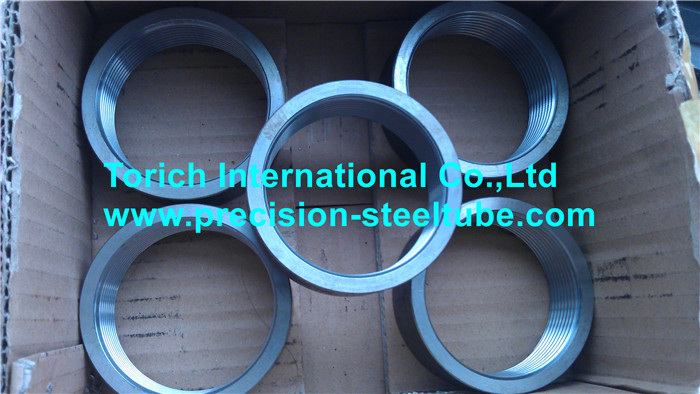

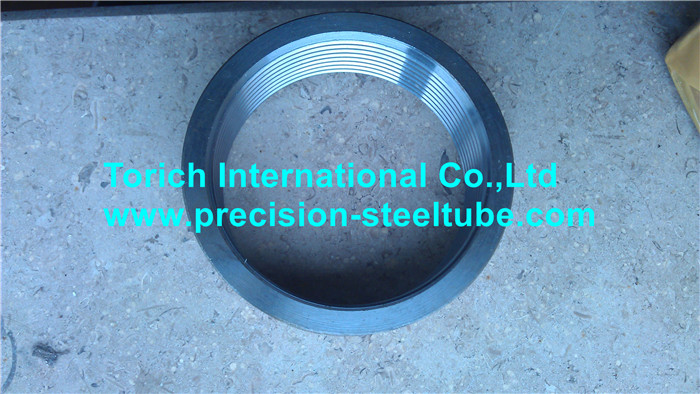

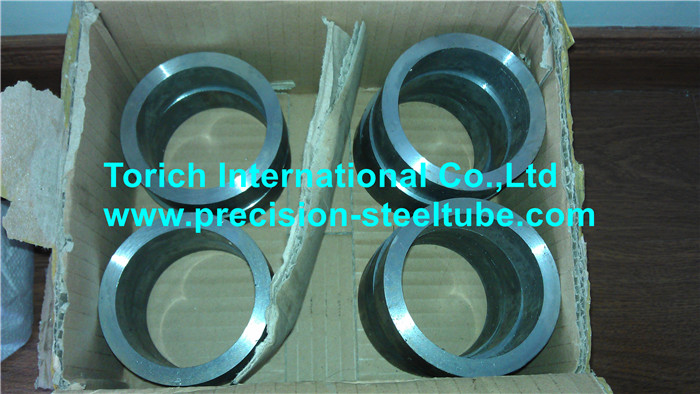

ASTM A519 High Precision Steel Tube Machining , Seamless Steel Pipe for Machining Images
