Low Carbon Welded DOM Steel Pipe SAE J525 DOM Metal Tubing for Auto Parts

Name: Low Carbon Welded DOM Steel Pipe SAE J525 DOM Metal Tubing for Auto Parts
Brand: TORICH
Price: 800 USD

Buy cheap Low Carbon Welded DOM Steel Pipe SAE J525 DOM Metal Tubing for Auto Parts product

Brand Name : TORICH

Model Number : SAE J525

Certification : ISO 9001 TS16949 CCS SON

Place of Origin : China

MOQ : 5 tons

Price : 800-1200 USD/ton

Supply Ability : 60000 tons per year

Delivery Time : 5-8weeks work days

Packaging Details : oil antirust in hexagonal bundles or in carbons or woodenboxes

Material : Low Carbon Steel

Standard : SAE J525

Shape : Round

Size range : OD6-88.9mm *WT1-15mm

Length : According to customer Order

Applications : For Bending and Flaring to Auto Parts

Production method : Cold Rolling on the Welded Steel tubes, to reach high accuracy on the OD and WT tolerance

Mill Test Certificate : EN10204 3.1

Delivery condition : Annealed etc

Contact Now

SAE J525 Welded Cold Draw Low Carbon Steel Tubing annealed for bending and flaring

Size range: O.D.:6-88.9mm W.T.:1-15mm L: According to customer Order

Applications: for Bending and Flaring to auto part

Table 1- TUBING OUTSIDE DIAMETER TOLERANCE
Nominal Tubing OD mm	Tolerance OD ±mm	Tolerance ID ±mm
Up to 9.50	0.05	0.05
Over 9.50 to 15.88 inclusive	0.06	0.06
Over 15.88 to 50.80 inclusive	0.08	0.08
Over 50.8 to 63.50 inclusive	0.10	0.10
Over 63.50 to 76.20 inclusive	0.13	0.13
Over 76.20 to 100.00 inclusive	0.15	0.15
WT tolerance shall be not more than 10%

Table 2- TUBING WALL THICKNESS TOLERANCE
Nominal Wall Thickness	Nominal OD Through 22mm ±mm	Nominal OD 22-48mm ±mm	Nominal OD 48-100mm ±mm
0.89	0.05/0.05	0.05/0.05	0.05/0.05
1.00	0.05/0.05	0.05/0.08	0.05/0.08
1.25	0.05/0.05	0.05/0.08	0.05/0.08

1.50	0.05/0.05	0.05/0.08	0.05/0.08
1.65	0.05/0.05	0.05/0.08	0.05/0.08
2.00	0.05/0.05	0.05/0.08	0.05/0.08
2.11	0.05/0.05	0.05/0.08	0.05/0.08

2.410	0.05/0.05	0.05/0.08	0.08/0.08
2.500	0.05/0.08	0.05/0.10	0.08/0.08
2.770	0.05/0.08	0.05/0.10	0.08/0.08
3.000	0.05/0.08	0.05/0.10	0.08/0.08
3.050	0.05/0.08	0.05/0.10	0.08/0.08

3.40	-	0.05/0.10	0.08/0.08
3.75	-	0.05/0.10	0.08/0.08
4.00	-	0.08/0.10	0.08/0.10
4.19	-	0.08/0.10	0.08/0.10
4.57	-	0.10/0.10	0.08/0.13
5.00	-	0.10/0.13	0.10/0.13

Table 2- CHEMICAL REQUIREMENTS
Element				%
Carbon				0.06-0.18
Manganese				0.30 to 0.60
Phosphprus				0.040 max
Sulfur				0.050 max

1. --Delivery: 60-70 days after receiving 30% T/T in advance

2. --Payment terms: 30% T/T in advance, the balance 70% paid before shipment.

3. --Packaging: antirust protection, In hexagon bundles

4. --Marks on pipes(tubes): Standard,Steel Grade, Size, Heat No.( or at the buyer's option).

5. --Mill Test Certificate:EN10204 3.1

For Application of:

Low Carbon Welded DOM Steel Pipe SAE J525 DOM Metal Tubing for Auto Parts

Cutting to Specified Length,

Packing Could be in Cartons or Wooden Boxes

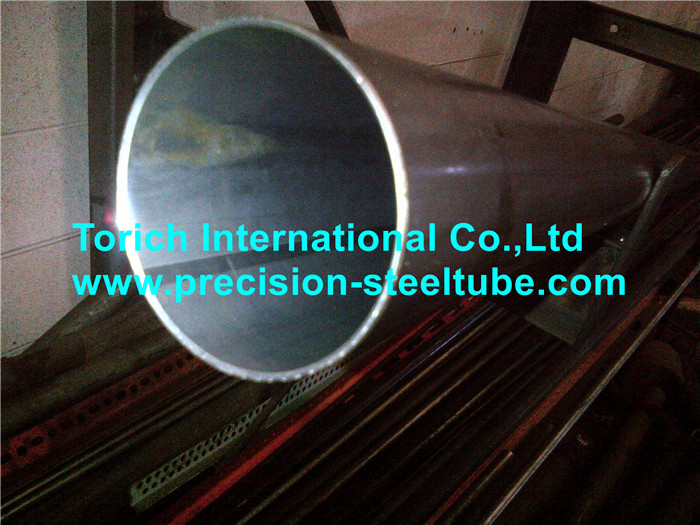

Low Carbon Welded DOM Steel Pipe SAE J525 DOM Metal Tubing for Auto Parts
