ASTM A513 DOM 1010 1020 1026 Mechanical Electric Resistance Welded Steel Pipe

Model Number : ASTM A513

Brand Name : TORICH

Certification : ISO9001:2008, TS16949

Place of Origin : China

MOQ : 5000 kgs

Price : USD 800-1200 per ton

Supply Ability : 20000 tons per year

Delivery Time : 4-6 weeks

Packaging Details : In bundles

Grade : 1010,1020,1026

Type : DOM

Production : Cold Drawn and Cutting

Material : Carbon Steel

Contact Now

ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing




                                       Steel Grade and Chemical Compositions:
Steel  Grade C Mn P S Si Cr Mo
max 　 max max max min 　
1008 0.10 0.5 0.035 0.035 　 　 　
1010 0.08-0.13 0.30-0.60 0.035 0.035 　 　 　
1018 0.14-0.20 0.30-0.60 0.035 0.035 　 　 　
1020 0.17-0.23 0.30-0.60 0.035 0.035 　 　 　
1026 0.22-0.28 0.60-0.90 0.035 0.035 　 　 　
1035 0.31-0.38 0.60-0.90 0.035 0.035 　 　 　
4130 0.28-0.33 0.40-0.60 0.035 0.035 0.15-0.35 0.80-1.10 0.08-0.25
4140 0.38-0.43 0.75-1.00 0.035 0.035 0.15-0.35 0.80-1.10 0.15-0.25




Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
　 ksi Mpa ksi Mpa 　 　 　
　 　 As-Welded Tubing 　 　 　
1008 30     207 42     290 15 50 　
1010 32     221 45     310 15 55 　
1020 38     262 52     359 12 62 　
1026 45     310 62     427 12 68 　
1035 50     345 66     455 10 75 　
4130 55     379 72     496 10 80 　
4140 70     485 90     621 10 85 　




Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
ksi Mpa ksi Mpa 　 　 　
　 　 Sink-Drawn Tubing 　 　 　
1008 38     262 48     331 8 65 　
1010 40     276 50     345 8 65 　
1020 50     345 60     414 8 70 　
1026 55     379 70     483 7 77 　
1035 70     483 80     552 7 82 　
4130 50     345 70     483 20 100 　
4140 65     448 90     621 20 105 　




Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
ksi Mpa ksi Mpa 　 　 　
　 　 Normalizing Tubing 　 　 　
1008 23     159 38     262 30 　 65
1010 25     172 40     276 30 　 65
1020 35     207 50     345 25 　 75
1026 40     276 60     414 25 　 80
1035 45     310 65     448 20 　 85





Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
ksi Mpa ksi Mpa 　 　 　
　 　 Mandrel-Drawn Tubing 　 　 　
1008 50     345 60     414 5 　 73
1010 50     345 60     414 5 　 73
1020 60     414 70     483 5 　 80
1026 70     483 80     552 5 　 85
1035 80     552 90     621 5 　 90
4130 85     586 95     655 5 　 90
4140 100    690 110     758 5 　 90


ASTM A513 DOM 1010 1020 1026 Mechanical Electric Resistance Welded Steel Pipe  ASTM A513 DOM 1010 1020 1026 Mechanical Electric Resistance Welded Steel Pipe









Product Tags:

welding steel tubing



electric resistance welded steel tube


Buy cheap ASTM A513 DOM 1010 1020 1026 Mechanical Electric Resistance Welded Steel Pipe product

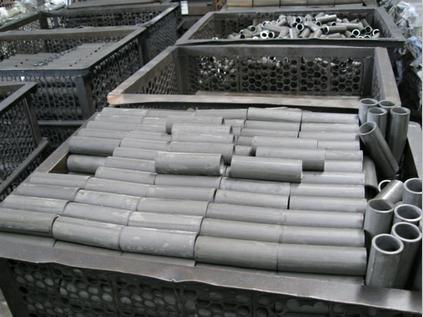

ASTM A513 DOM 1010 1020 1026 Mechanical Electric Resistance Welded Steel Pipe Images
